dam1941 - Preliminary
Soekris OEM line
The Soekris Engineering discrete R-2R sign magnitude DAC technology is now available as a highly integrated OEM module designed to help OEMs creating high end Audio DACs with the great R-2R sound.
Input is USB, I2S, SPDIF BNC, RCA, XLR and Toslink. Output is directly from the Resistor Networks, the dam1941 have four full Sign Magnitude R-2R networks for fully balanced operation, the dam1921 have just two Sign Magnitude R-2R networks mounted but is otherwise the same as the dam1941. It have the options to operate from a Basic DAC to a full DAC / HeadAmp with and advanced user interface with Volume Control, just like our high end dac1541, and without requiring any programming, the onboard microprocesser do all the work. The OEM just need to add a Power Supply and Output Buffer, and if needed, an optional small PCB with the user interface. The dam1941 also include a license for the full Thesycon USB driver set.
dam1941 User Manual
dam1941 Mechanical
Drawing
dam1941 Accessory PCB docs
dam19x1 firmware and
filters 1.23
Pricing qty 1, excluding local VAT and taxes:
dam1921-02: EUR 380 (0.02% resistors, partial mounted single ended version)
Discontinued.
dam1941-12: EUR 550 (0.01%/0.02% resistors, fully mounted balanced version)
Discontinued.
dam19x1 Set of Bare Accessory PCBs: EUR 30
In Stock.
Accessory PCB's are supplied unmounted, photo below show how they
looks like when mounted.
Please email info@soekris.dk
for OEM and Volume pricing.

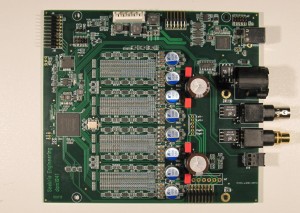

dam1941 |
 |
||
dam1941 System |
Specifications:
| Product Name | dam1941-12 | dam1921-02 |
| THD @ -1db | <0.005% | <0.008% |
| THD @ -60dB | <0.02% | <0.03% |
| Clock Jitter RMS | 0.3 pS typical | 0.3 pS typical |
| Resistors Precision | 27 bit, 0.01% - 0.05% Resistors | 27 bit, 0.02% - 0.05% resistors |
| S/N Ratio 20 Khz Bandwith | 132 dB unweighted | 129 dB unweighted |
| Frequency Range +0.1dB -1.0dB | 20hz - 20Khz | |
| Input SPDIF | Up to 24 bit / 192 Khz | |
| Input USB / I2S PCM | Up to 24 bit / 384 Khz | |
| Input USB / I2S DSD | Up to DoP128 and DSD256 | |
| Digital volume control | -90 dB to +10 dB | |
| Output Line | Bal 2.6V RMS, Zout 1250 Ohm | SE 1.3V RMS, Zout 625 Ohm |
| Power | +5V max 0.6A, -5V max 0.1A | |
| Size | 144 x 162 x 30 mm | |
